PHPMD Converter

Note

Available since version 1.0.0

Requirements

PHP Mess Detector version 2.0 requires PHP version 5.3.9 or greater, with xml extensions loaded
PHP Mess Detector version 3.0 requires PHP version 8.1 or greater, with xml extensions loaded

The Bartlett\Sarif\Converter\Reporter\PhpMdRenderer class is ready to use the new feature : Simplify load of external custom renderer available into PHPMD version 3.0

Installation

composer require --dev phpmd/phpmd bartlett/sarif-php-converters

Usage

Warning

As PHMMD v2.15 is not able to specify/boot custom renderer easily, we have no other alternative that using the Console Tool convert command.
With PHPMD v3.0 is easier. Use the alternative solution at step 3.

Build the checkstyle output report

vendor/bin/phpmd /path/to/source checkstyle ruleset --report-file=checkstyle.xml

And finally, convert it to SARIF with the Console Tool

php report-converter convert phpmd --input-format=checkstyle --input-file=examples/phpmd/checkstyle.xml -v

Tip

Without verbose option (-v) the Console Tool will print a compact SARIF version.
--output-file option allows to write a copy of the report to a file. By default, the Console Tool will always print the specified report to the standard output.

Alternative usage

Build the sarif output report directly via the default `Bartlett\Sarif\Converter\Reporter\PhpMdRenderer`

vendor/bin/phpmd analyze /path/to/source --format='\Bartlett\Sarif\Converter\Reporter\PhpMdRenderer' --bootstrap=autoload.php > sarif.json

Tip

Without verbose option (-v) the Renderer will print a compact SARIF version.

Learn more

See demo examples/phpmd/ directory into this repository.

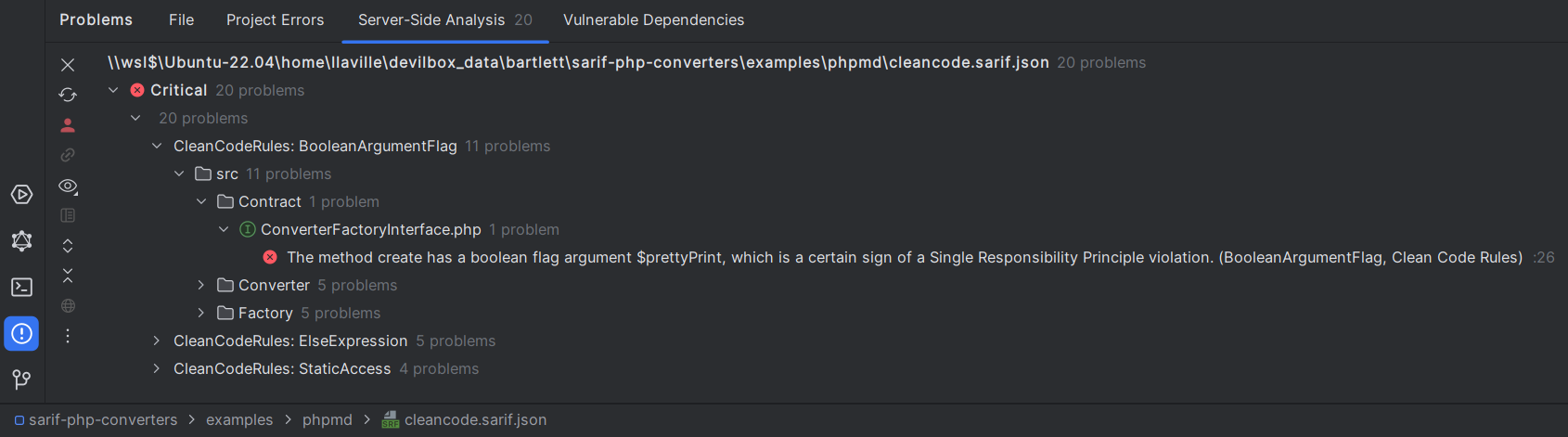

IDE Integration

The SARIF report file [*].sarif.json is automagically recognized and interpreted by PhpStorm (2024).

PHPStorm integration

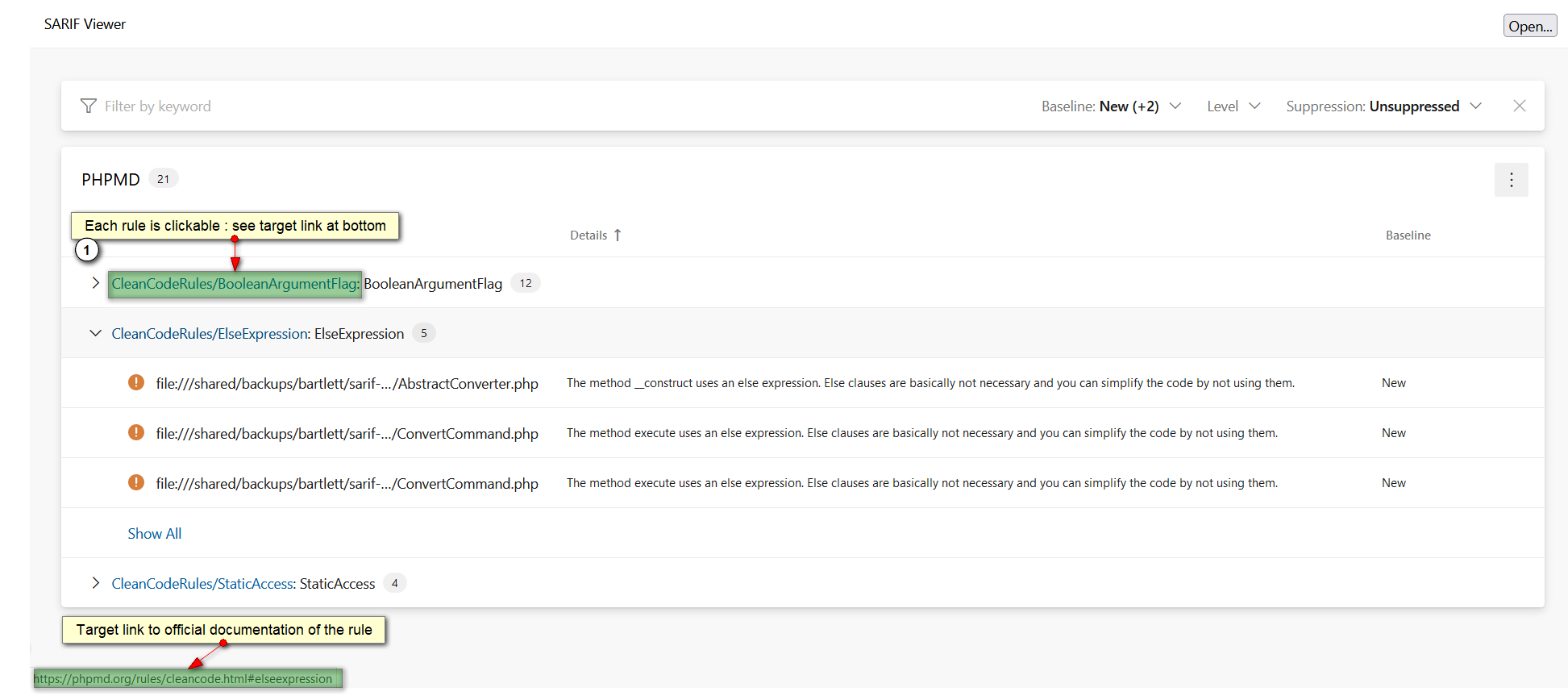

Web SARIF viewer

With the React based component, you are able to explore a sarif report file previously generated.

For example:

sarif-web-phpmd
